RF-V44 All Netcom 4G Solar Energy Automatic Charging Cattle and Sheep Waterproof GPS Locator Over 9000 mA Standby

Product features:

◇ Host specifications Details
◇ Chip platform RTOS ASR3603S
* CPU Frequency 832MHz
* Framework One-core ARM Cortex-R5 processor
* Cores single core
◇ Support network frequency GSM\WCDMA\FDD-LTE
◇Bands combination FDD: B1 B2 B3 B5 B7 B8 B20 B28A;
WCDMA: B1\2\5\8
GSM: Band B2\3\5\8;
◇ Standby mode Single-card of Nano SIM
◇ Receive diversity Supports
◇ Data rate 4G Data: CAT1
3G Data:WCDMA
2G Data: EDGE
◇Positioning functions Description
GPS * GPS Supports
Chip module: Main chip internal integrated
GPS signal: L1,1575.42MHz C/A code
GPS channel number: 72 channels
GPS chip scale receiving sensitivity Trace:-163dBm, Capture:-147dBm
GPS accuracy 5-15m
GPS Antenna Ceramic antenna
* AGPS Supports
AGPS fast position time Cold boot within 28 sec to locate
LBS LBS position Supports
LBS accuracy 100-1000M (base on Amap database)
WIFI  WiFi position Supports
WiFi chip module In built
WiFi Standard 802.11b\802.11g\802.11n
WiFi accuracy 5-50M(base on Amap database)
WiFi hotspot Supports
WiFi data transfer Supports
◇Parameters Description
Battery 9000mAh
Average standby current 5mA/h  (turn of internet work)
Average working current 8mA/h (upload position within every 10minutes)
Working Temps  -20~70℃
Working Humidity 5% to 95% nonsolidifying
Waterproof level IP66
◇ Special features Description
Ultra-low power consumption  Supports
Location check on the Internet By App or web platform in PC and smart phone
Historical route check Supports
SMS text commands Supports
In-built battery Supports
Blind spot supplement upload Supports
Position drift processing Supports
Lithium battery charging circuit Supports
Battery charging protection Supports
Remote voice monitoring Supports
Indicators\types Red/Blue
Infrared distance sensing alarm remove detection Supports
Alert prompt by buzzer Supports
Charging boot Supports
Audio Supports with buzzer
Side button\type Power on and off button
◇ Appearance Description
◇ Product modeling Solar Charge type GPS Tracker
◇ physical dimension 97*69*31mm
◇ Weight 255g
◇ Color options Black

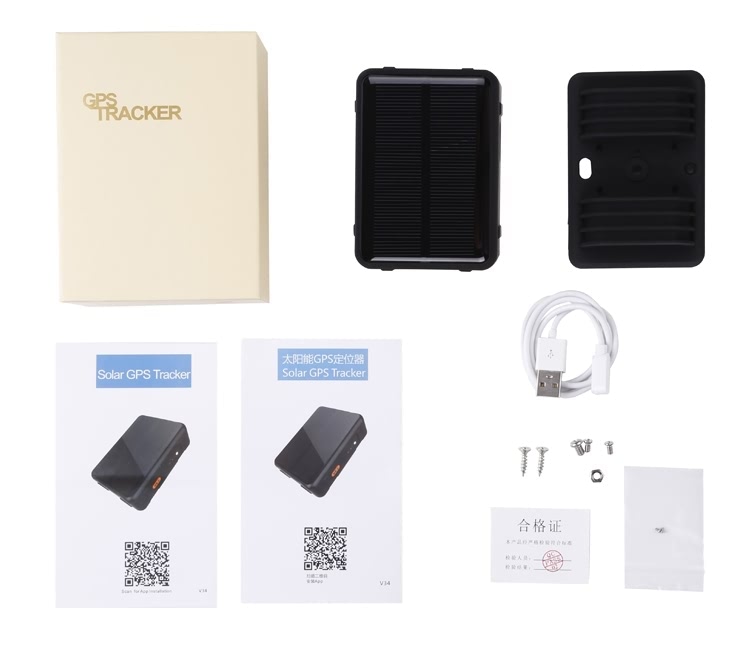

◇ Packaging accessories Description
◇ Host   available
◇ User manual available
◇ Screws and scres driver available
◇ USB cable\type Magnet USB cable
◇ Package type box with top and bottom lid
◇ Collar holder Option
◇ Magnettic holder Option
◇ Screw holder Option
◇App and software Description
◇ UI Style Squared Up
◇Software functions Real time tracking check location, adjust location uploading intervals and navigate.
Historical route Check each single day's location in the latest 90 days.
Geo-fence 1.GPS fence: Compare GPS locations and judge it gets in or out of the fence.
2.WIFI fence:Compare WIFI locations and judge it gets in or out of the fence.
Health Calculate the amount of pet activity, calorie consumption and exercise journey.
Talk 1.Call the tracker to hear the sound around it.
2.Voice monitoring: Request the tracker to call the SOS number for voice monitoring.
Settings To set settings of the pet tracker.                   For example:
1.Main monitor number is to get alarm SMS.
2.Take-off device alert:when the device was take off,then it will send alarm by SMS ,App or call.
3.Ring your tracker: The tracker will beeps continuously or discontinuously after getting the command for a fast pet trace.
4.Timing Switch: Set device on/off time.
Alarm list To display all alerts triggered by the tracker, including offline, low battery and fence in and out ones.
Remind setting Turn on all options to get alert notifications. Please turn on the smart phone's App permission for notifications.
◇ Host specifications Details
◇ Chip platform RTOS ASR3603S
* CPU Frequency 832MHz
* Framework One-core ARM Cortex-R5 processor
* Cores single core
◇ Support network frequency GSM\WCDMA\FDD-LTE
◇Bands combination FDD: B1 B2 B3 B5 B7 B8 B20 B28A;
WCDMA: B1\2\5\8
GSM: Band B2\3\5\8;
◇ Standby mode Single-card of Nano SIM
◇ Receive diversity Supports
◇ Data rate 4G Data: CAT1
3G Data:WCDMA
2G Data: EDGE
◇Positioning functions Description
GPS * GPS Supports
Chip module: Main chip internal integrated
GPS signal: L1,1575.42MHz C/A code
GPS channel number: 72 channels
GPS chip scale receiving sensitivity Trace:-163dBm, Capture:-147dBm
GPS accuracy 5-15m
GPS Antenna Ceramic antenna
* AGPS Supports
AGPS fast position time Cold boot within 28 sec to locate
LBS LBS position Supports
LBS accuracy 100-1000M (base on Amap database)
WIFI  WiFi position Supports
WiFi chip module In built
WiFi Standard 802.11b\802.11g\802.11n
WiFi accuracy 5-50M(base on Amap database)
WiFi hotspot Supports
WiFi data transfer Supports
◇Parameters Description
Battery 9000mAh
Average standby current 5mA/h  (turn of internet work)
Average working current 8mA/h (upload position within every 10minutes)
Working Temps  -20~70℃
Working Humidity 5% to 95% nonsolidifying
Waterproof level IP66
◇ Special features Description
Ultra-low power consumption  Supports
Location check on the Internet By App or web platform in PC and smart phone
Historical route check Supports
SMS text commands Supports
In-built battery Supports
Blind spot supplement upload Supports
Position drift processing Supports
Lithium battery charging circuit Supports
Battery charging protection Supports
Remote voice monitoring Supports
Indicators\types Red/Blue
Infrared distance sensing alarm remove detection Supports
Alert prompt by buzzer Supports
Charging boot Supports
Audio Supports with buzzer
Side button\type Power on and off button
◇ Appearance Description
◇ Product modeling Solar Charge type GPS Tracker
◇ physical dimension 97*69*31mm
◇ Weight 255g
◇ Color options Black
◇ Packaging accessories Description
◇ Host   available
◇ User manual available
◇ Screws and scres driver available
◇ USB cable\type Magnet USB cable
◇ Package type box with top and bottom lid
◇ Collar holder Option
◇ Magnettic holder Option
◇ Screw holder Option
◇App and software Description
◇ UI Style Squared Up
◇Software functions Real time tracking check location, adjust location uploading intervals and navigate.
Historical route Check each single day's location in the latest 90 days.
Geo-fence 1.GPS fence: Compare GPS locations and judge it gets in or out of the fence.
2.WIFI fence:Compare WIFI locations and judge it gets in or out of the fence.
Health Calculate the amount of pet activity, calorie consumption and exercise journey.
Talk 1.Call the tracker to hear the sound around it.
2.Voice monitoring: Request the tracker to call the SOS number for voice monitoring.
Settings To set settings of the pet tracker.                   For example:
1.Main monitor number is to get alarm SMS.
2.Take-off device alert:when the device was take off,then it will send alarm by SMS ,App or call.
3.Ring your tracker: The tracker will beeps continuously or discontinuously after getting the command for a fast pet trace.
4.Timing Switch: Set device on/off time.
Alarm list To display all alerts triggered by the tracker, including offline, low battery and fence in and out ones.
Remind setting Turn on all options to get alert notifications. Please turn on the smart phone's App permission for notifications.
