◇ Host specifications | Details |
* Data type of system | 32 bit |
◇ Chip platform | 9820E |
* Architecture | Dual-core ARM CortexTM A7MP processor |
* Core Number | Dual-core |
◇Bands combination(A) |
4G-FDD: Band 1\2\3\5\7\8
4G-TDD:Band38\39\40\41(100M)
3G-WCDMA: Band 1\2\5\8
2G-GSM: Band 2\3\5\8;
|
◇Bands combination(B) |
4G-FDD: B1 B2 B3 B4 B5 B7 B8 B12 B20 B28A
3G-WCDMA: B1 B2 B5 B8
2G-GSM: B2 B3 B5 B8
|
◇ Standby mode | Single-card of Nano SIM |
◇ Receive diversity | Supports |
◇ Data rate |
2G Data: EDGE 3G Data: DC-HSPA+\4.2\2.2Mbps 4G Data: CAT4 |
◇ Storage | Description |
* Chip IC,Supplier | PN614G8D2TE-B8BE0,XTX |
* ROM\RAM | NAND+LPDDR2 |
* RAM+ROM | 2Gb+4Gb |
* External memory card\type | Not support |
◇Positioning functions | Description |
* GPS | Supports |
Chip module: | Main chip internal integrated |
GPS channel number: | 22 channels |
GPS chip scale receiving sensitivity | Trace:-165dBm, Capture:-148dBm |
GPS accuracy | 5-15m |
GPS Antenna | ceramic Antenna |
* AGPS | Supports |
AGPS fast position time: | Cold boot within 26 sec to locate |
* LBS Sim base tracking | Supports |
LBS accuracy | 100-1000M |
* WiFi | Supports |
WiFi chip module | In built |
WiFi Standard | 802.11b\802.11g\802.11n |
WiFi accuracy | Depends on Google maps and Gaode maps |
◇Other parameters of the mainboard | Description |
Average standby current | 5 mA/h |
Average working current | 10 mA/h |
Working Temps | -20~70℃ |
Working Humidity | 5% to 95% nonsolidifying |
5 creative function
16 functional operations
4G full NetCom
|
Multi-tracking ways
|
One SOS button for help
|
audio call
|
HD camera
|
colorful display screen
|
IP67 waterproof
|
talking clock
|
ring to find
|
step counting
|
pill reminder
|
low battery alarm
|
clock alarm
|

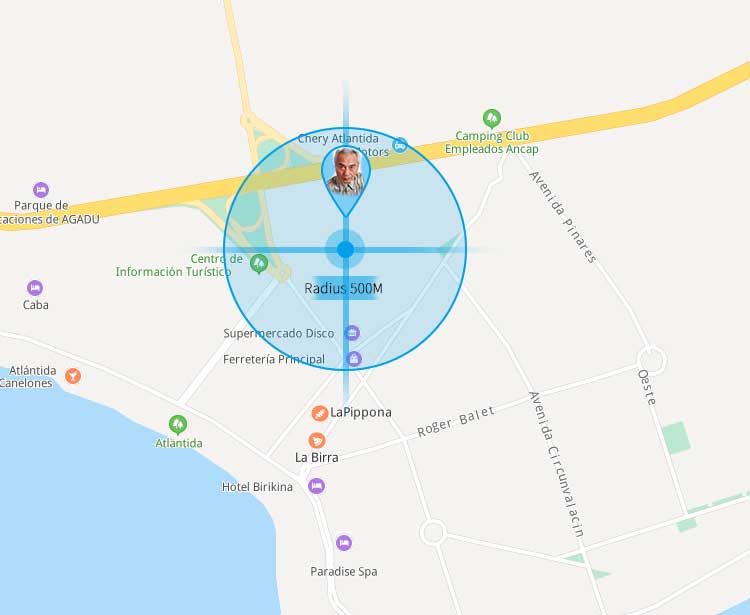

safety fence
|
historical route
|

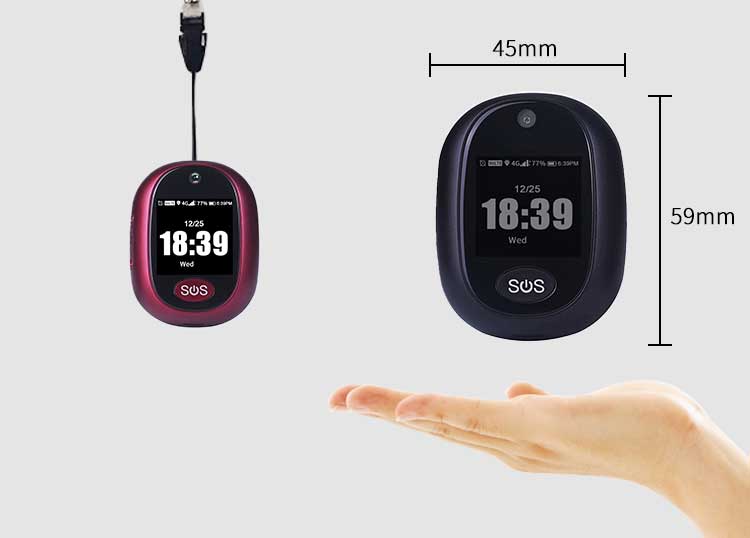

small but smart
|
Three tracking modes,more accurate positioning no matter it is in grassland,plateau, mountain, snow or saline land.

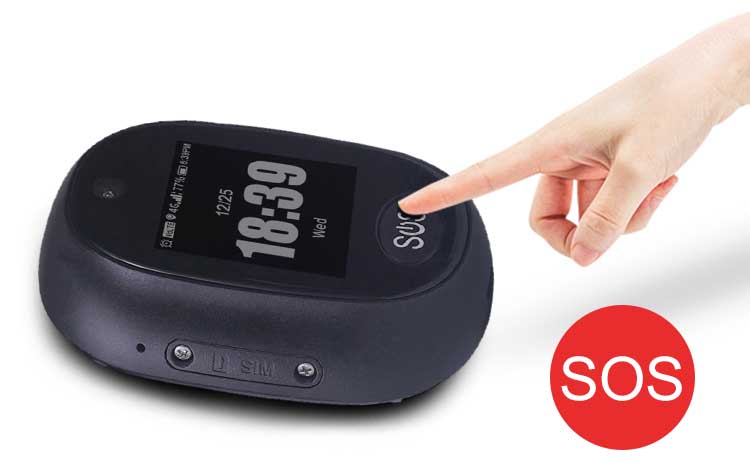

Preset 3 SOS numbers to receive urgent call when thependant holder presses SOS button for 5 seconds then it triggers alarm for help

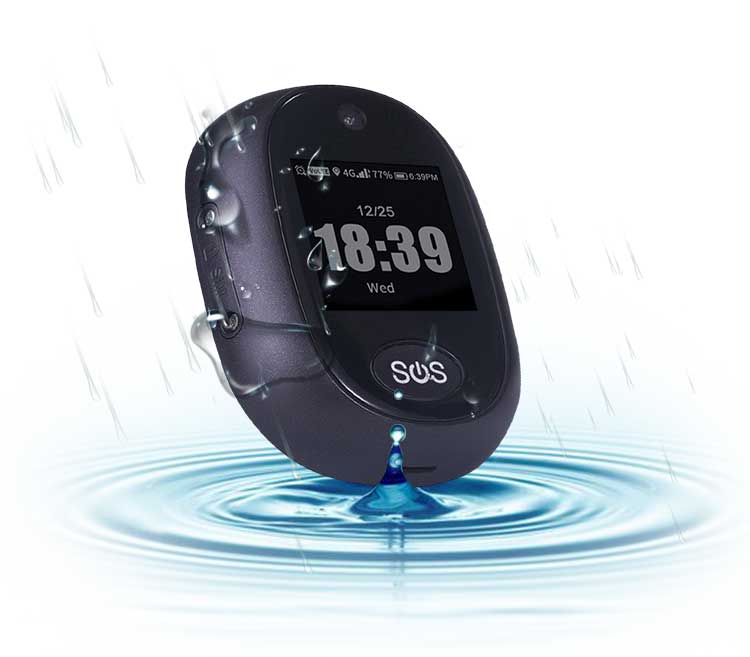

Better waterproof

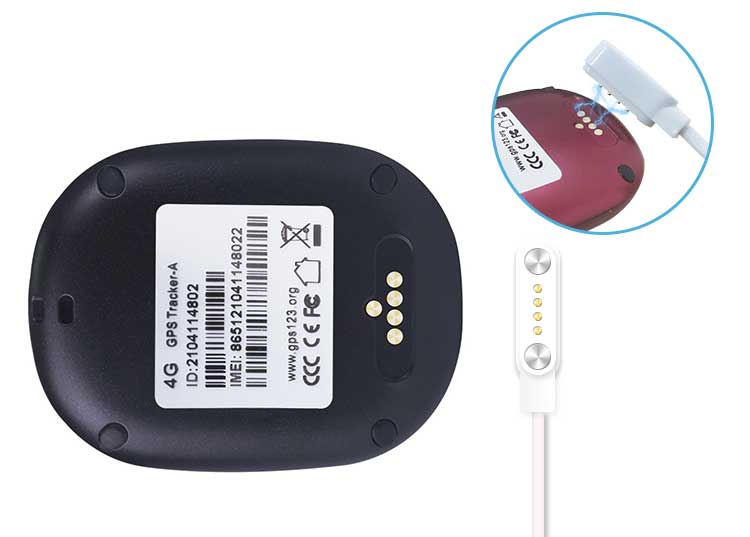

Magnet charging way becomes
easier and safer
With magnet charging way, no more worries aboutdevice powers off with battery runs out but hard to charge with poor eyesight,offering better cares to your families

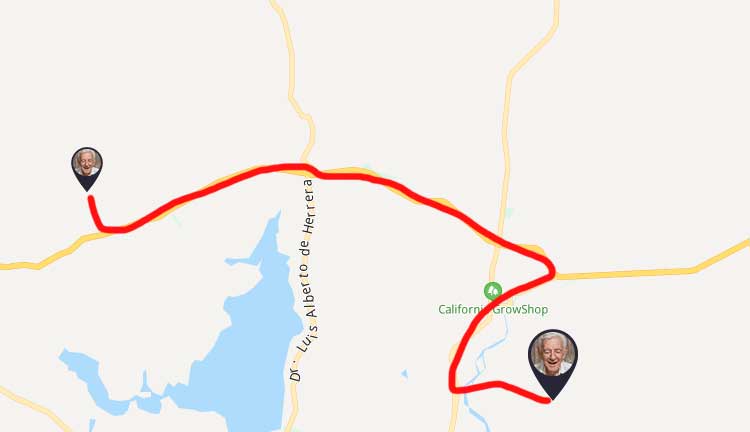

In mobile App, families can check device holder’s historical route positively for better cares to them

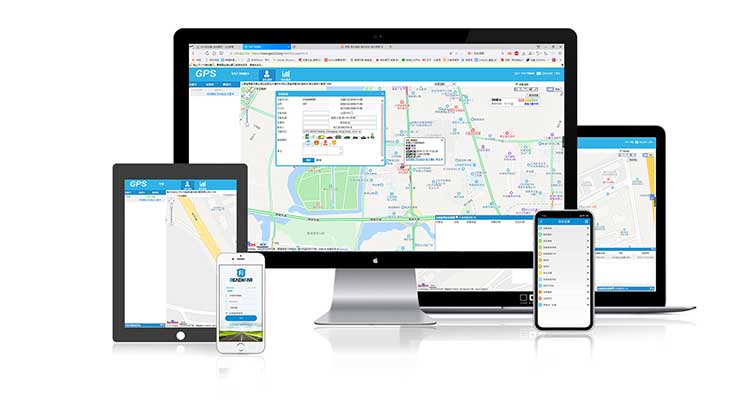

Multi-terminal monitor
by all families
Real time monitoring can be accessed from multiple terminals,like PC, mobile,etc. More cares from more families together
◇ Host specifications | Details |
* Data type of system | 32 bit |
◇ Chip platform | 9820E |
* Architecture | Dual-core ARM CortexTM A7MP processor |
* Core Number | Dual-core |
◇Bands combination(A) |
4G-FDD: Band 1\2\3\5\7\8
4G-TDD:Band38\39\40\41(100M)
3G-WCDMA: Band 1\2\5\8
2G-GSM: Band 2\3\5\8;
|
◇Bands combination(B) |
4G-FDD: B1 B2 B3 B4 B5 B7 B8 B12 B20 B28A
3G-WCDMA: B1 B2 B5 B8
2G-GSM: B2 B3 B5 B8
|
◇ Standby mode | Single-card of Nano SIM |
◇ Receive diversity | Supports |
◇ Data rate |
2G Data: EDGE 3G Data: DC-HSPA+\4.2\2.2Mbps 4G Data: CAT4 |
◇ Storage | Description |
* Chip IC,Supplier | PN614G8D2TE-B8BE0,XTX |
* ROM\RAM | NAND+LPDDR2 |
* RAM+ROM | 2Gb+4Gb |
* External memory card\type | Not support |
◇Positioning functions | Description |
* GPS | Supports |
Chip module: | Main chip internal integrated |
GPS channel number: | 22 channels |
GPS chip scale receiving sensitivity | Trace:-165dBm, Capture:-148dBm |
GPS accuracy | 5-15m |
GPS Antenna | ceramic Antenna |
* AGPS | Supports |
AGPS fast position time: | Cold boot within 26 sec to locate |
* LBS Sim base tracking | Supports |
LBS accuracy | 100-1000M |
* WiFi | Supports |
WiFi chip module | In built |
WiFi Standard | 802.11b\802.11g\802.11n |
WiFi accuracy | Depends on Google maps and Gaode maps |
◇Other parameters of the mainboard | Description |
Average standby current | 5 mA/h |
Average working current | 10 mA/h |
Working Temps | -20~70℃ |
Working Humidity | 5% to 95% nonsolidifying |
