out of production

High Quality RF-V38 GSM Sim Card Real Time Tracking SOS Smart GPS Tracker Watch for Kids or elderly

Product features:

Product Name: 2G Smart GPS Watch
Model: RF-V38
Brand: Reachfar
Item: Specifications
2G GSM: 850/900/1800/1900MHz
ID Style: Simple and Graceful, Delicate
IP Grade: IP67
Dimension: 57*39*16mm(watch host)
Color: Golden & Black and Blue
Button: Two Buttons:SOS and Power Buttons
Screen: 1.44 inch Touch Screen
GPS Antenna: High Sensitivity Ceramic Active Antenna
GSM Antenna: FPC Antenna
Battery: 420mAh
SIM Card: Micro SIM Card
G-sensor: Support
I/P Port: USB Magnet Charger
Chip: MT2503A
GPRS: Class 12
GPS Signal: L1,1575.42MHz C/A
GPS Channel No. 22 Channels
GPS Chip Scale Receiving Sensitivity: Trace:-165dBm, Capture:-148dBm
GPS Accuracy: 5~15m(Open Sky)
LBS Accuracy: 100~1000m
WIFI Accuracy: 15~100m(WIFI area)
Minimum Standby Current: <0.5mA
Average Standby Current: <2mA
Average Working Current: ≈55mA
Working Temps: -18~70℃
Working Humidity: 5% to 95% Non solidifying
Certification and Patent: 3C,CE,RoHS,FCC Certifications and Design Patent
GPS Antenna: Inbuilt Ceramic active antenna
GSM Antenna: Inbuilt antenna
Bluetooth: Bluetooth 3.0(Normal Closed)
G-sensor: Support
MIC: Support

Functions and Application:

The main functions of this product are calling for help, positioning and health monitoring. Apply to kids safety and elderly care center, private clinic, alzheimer care center, patients with alzheimer, heart disease and chronic disease.


RF-V38 2G Smart GPS Watch Features:

1.WIFI+GPS+LBS Real-time tracking.

2.Historical route playback.

3.WIFI fence & Geo-fence Double fences, overall protection.

4.Faster and timely for help by pressing SOS button for 3 seconds in urgent situations.

5.Two-way audio talk becomes warmer and clearer, Vibrate & Ring for incoming call.

6.Step counting and Weather forecast, big font for older personal.

7.Waterproof IP67, Long standby and low battery reminder, SIM card changing alarm.

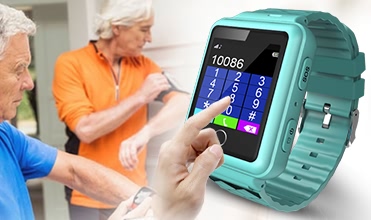

Touch screen for dailing

With a touch screen, dailing phone numbers becomes freely. It has no more limits with a GPS tracker making phone calls out.

IP67 grade of waterproof

Since accidents easily happen when the elderly taking a shower, ReachFar released V36, a watch can be worn in shower time to enable SOS help once accident happens.

Real time Voice chat

Voice chat enables the watch wearer talks to App freely. Just press the button and record your voice then send out to the App, which makes the guardian to hear the loved one's voice in no time.

New battery with large capacity

+30% more
Longer standby time lasts nearly 4 days and 4 hours' calls. Farewell to One Day a Charge.

Step counting

To record the wearer's movement status, our RF-V38 watch provides a quick feedback of steps the wearer walk or run daily.

Real time tracking

The smart watch RF-V38 supports real time tracking, which enables guardian to check wearer's location in emergency. Displaying in App map makes it easier to find the wearer.


Product Name: 2G Smart GPS Watch
Model: RF-V38
Brand: Reachfar
Item: Specifications
2G GSM: 850/900/1800/1900MHz
ID Style: Simple and Graceful, Delicate
IP Grade: IP67
Dimension: 57*39*16mm(watch host)
Color: Golden & Black and Blue
Button: Two Buttons:SOS and Power Buttons
Screen: 1.44 inch Touch Screen
GPS Antenna: High Sensitivity Ceramic Active Antenna
GSM Antenna: FPC Antenna
Battery: 420mAh
SIM Card: Micro SIM Card
G-sensor: Support
I/P Port: USB Magnet Charger
Chip: MT2503A
GPRS: Class 12
GPS Signal: L1,1575.42MHz C/A
GPS Channel No. 22 Channels
GPS Chip Scale Receiving Sensitivity: Trace:-165dBm, Capture:-148dBm
GPS Accuracy: 5~15m(Open Sky)
LBS Accuracy: 100~1000m
WIFI Accuracy: 15~100m(WIFI area)
Minimum Standby Current: <0.5mA
Average Standby Current: <2mA
Average Working Current: ≈55mA
Working Temps: -18~70℃
Working Humidity: 5% to 95% Non solidifying
Certification and Patent: 3C,CE,RoHS,FCC Certifications and Design Patent
GPS Antenna: Inbuilt Ceramic active antenna
GSM Antenna: Inbuilt antenna
Bluetooth: Bluetooth 3.0(Normal Closed)
G-sensor: Support
MIC: Support
